Laser Coder

Digital Printing
Product Model
  • D-Series : CO2 Laser
  • F-Series : Fibre Laser
  • U510 : UV Laser
  • DPX : Extraction
Brand
Domino
Certificate
GS-1

Product details

New technology for printing date, month, year, time, Batch/Lot from Domino laser system. Your worthwhile decision, just invest in a printer once, and you won't have to bear cost of consumable waste any further. The printer is more convenient, clean, easy to install and maintain, and reducing downtime.

D-Series : CO2 Laser
D-Series : CO2 Laser
High speed & quality CO2 laser printing even in harsh environments

The laser printer is equipped with i-Tech Scan Head and IP65 technology. The printer can be installed in limited space or dusty and humid environment.

Creating message is fast with an easy-to-use interface. Data can also be uploaded or downloaded from the controller via USB or via an Ethernet network.

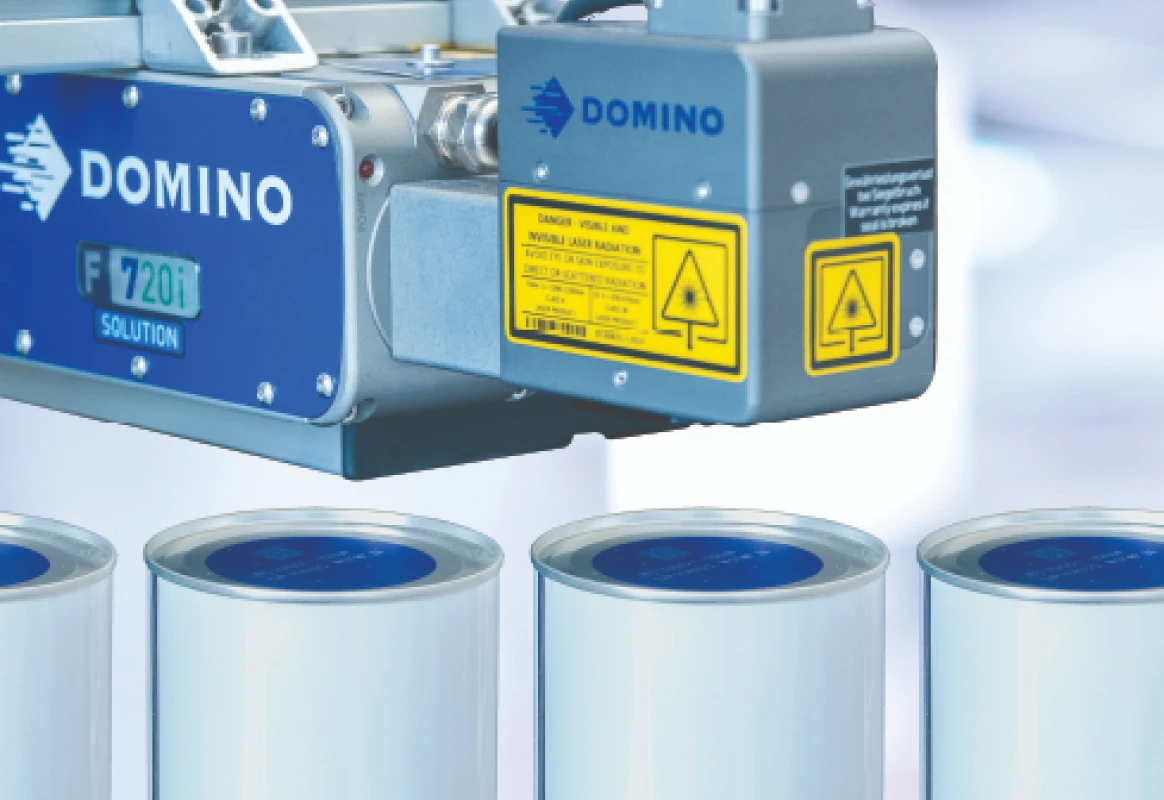

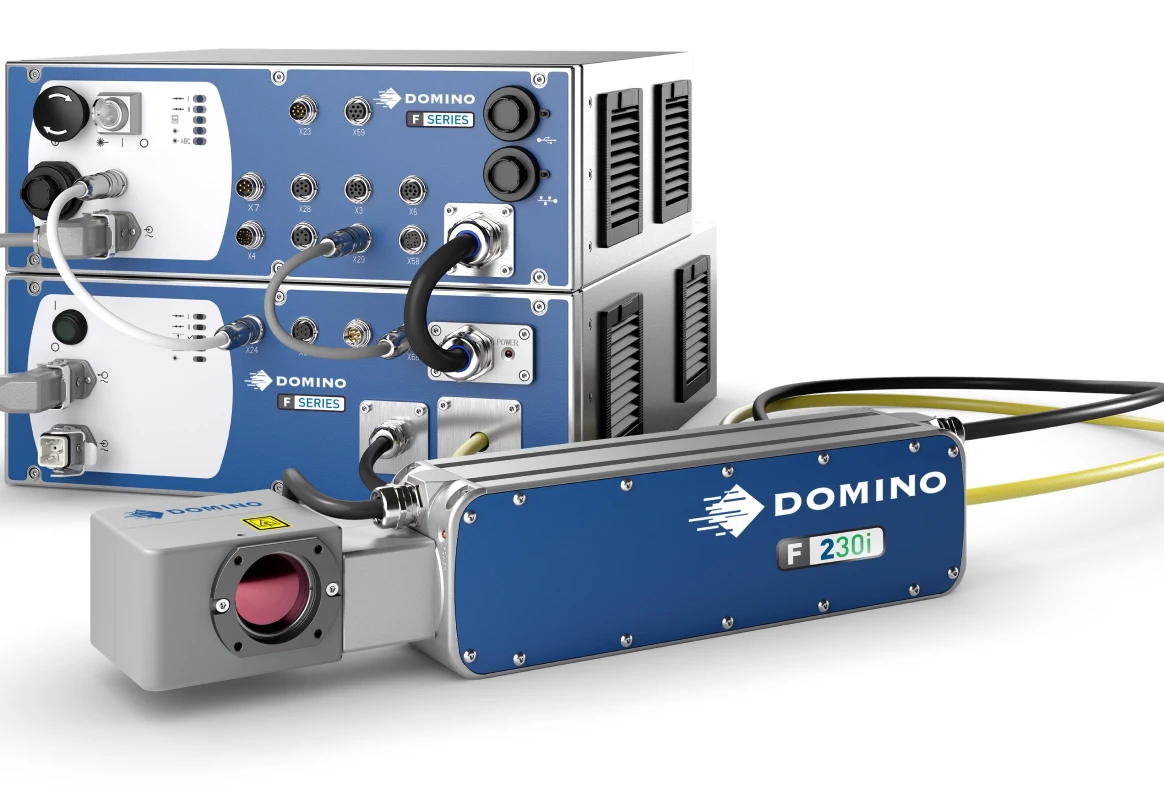

F-Series : Fibre Laser Our precise and high pulse power fibre laser system
F-Series : Fibre Laser
Our precise and high pulse power fibre laser system

Fiber Laser Coder is the latest technology. Combining the performance of i-Tech and Fiber Laser systems to optimize performance and cost - effectiveness.

The F-Series Laser Coder is designed to be flexible for installation in small area or space-constraint. Its familiar interface system is easy use. Settings are quick to edit and change. Message creation is also easy and quick. Data can also be uploaded or downloaded from the controller via USB or via an Ethernet network.

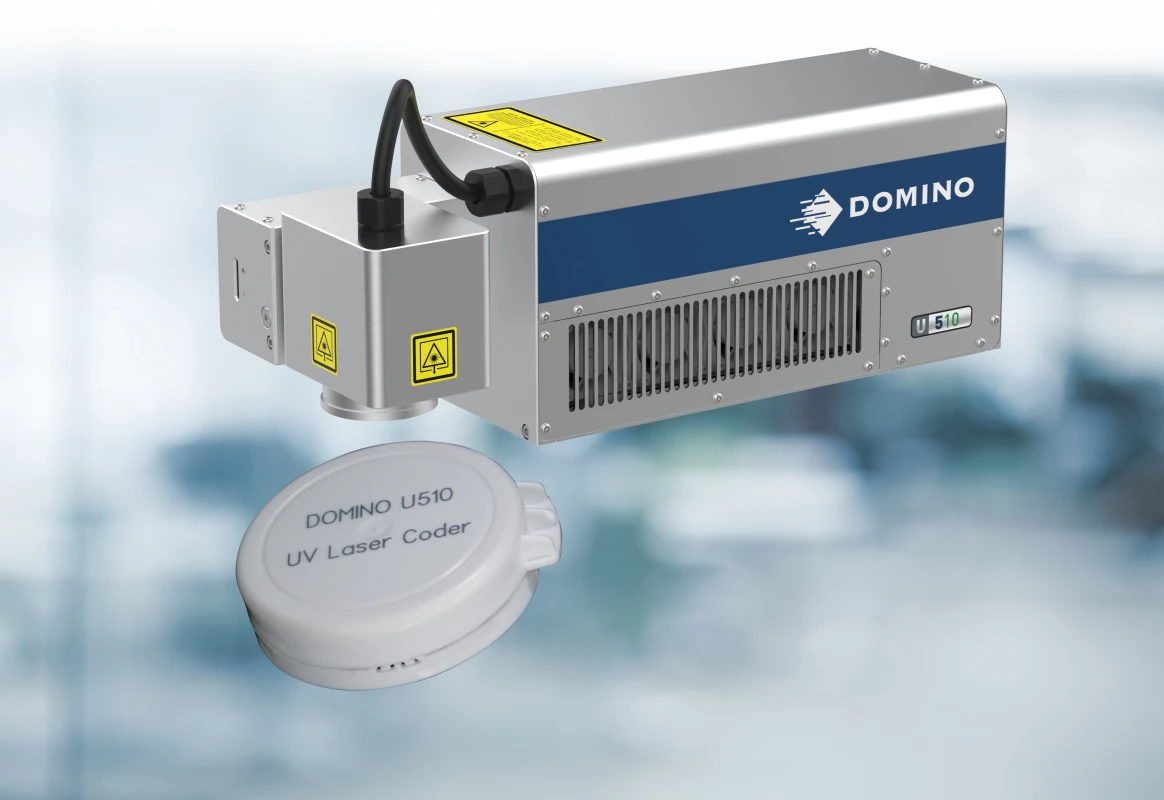

U510 : UV Laser Permanent codes on plastics and films
U510 : UV Laser
Permanent codes on plastics and films

The compact all-in-one laser coder excels on modern sustainable packaging developments such as recyclable flexible mono-material polymers including thin films. Utilising UV light coding is achieved by a photochemical reaction in the top layer of substrates, which keeps the protective barrier of packaging intact and enables the marking of white and coloured products anywhere, without the need for laser-activated fields. Resulting in crisp, high contrast white codes on dark coloured materials and black codes on light coloured materials.

The U510 is designed for Industry 4.0 requirements. Line integration is simplified by the all-in-one controller and laser unit; an IP55 rating makes the U510 an ideal fit for wet or dusty production environments.

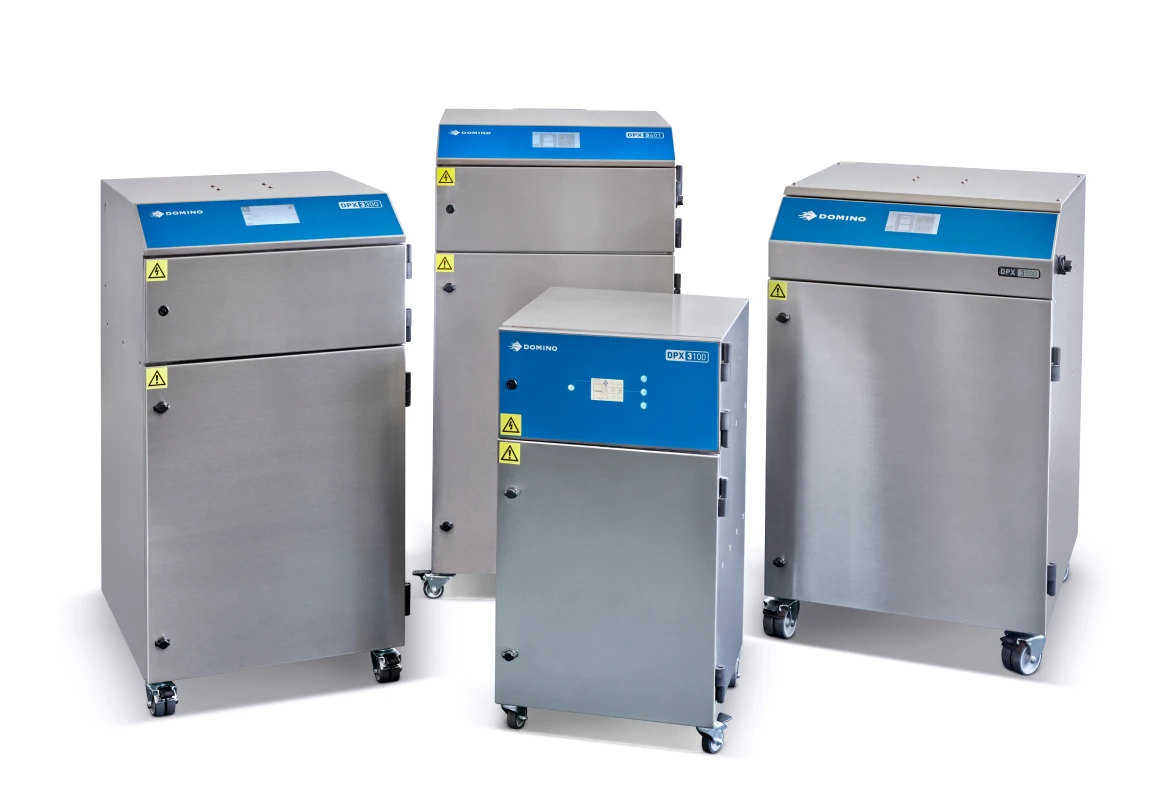

DPX : Extraction Clean air never looked so good
DPX : Extraction
Clean air never looked so good

DPX Extraction Unit will remove smoke, debris and gas from laser printing process bearing in mind the clean environment and user’s safety.

It has 3 layers of filtration, which can filter foreign matter and residues at high efficiency, it could possibly be installed and operates in clean room environment.
