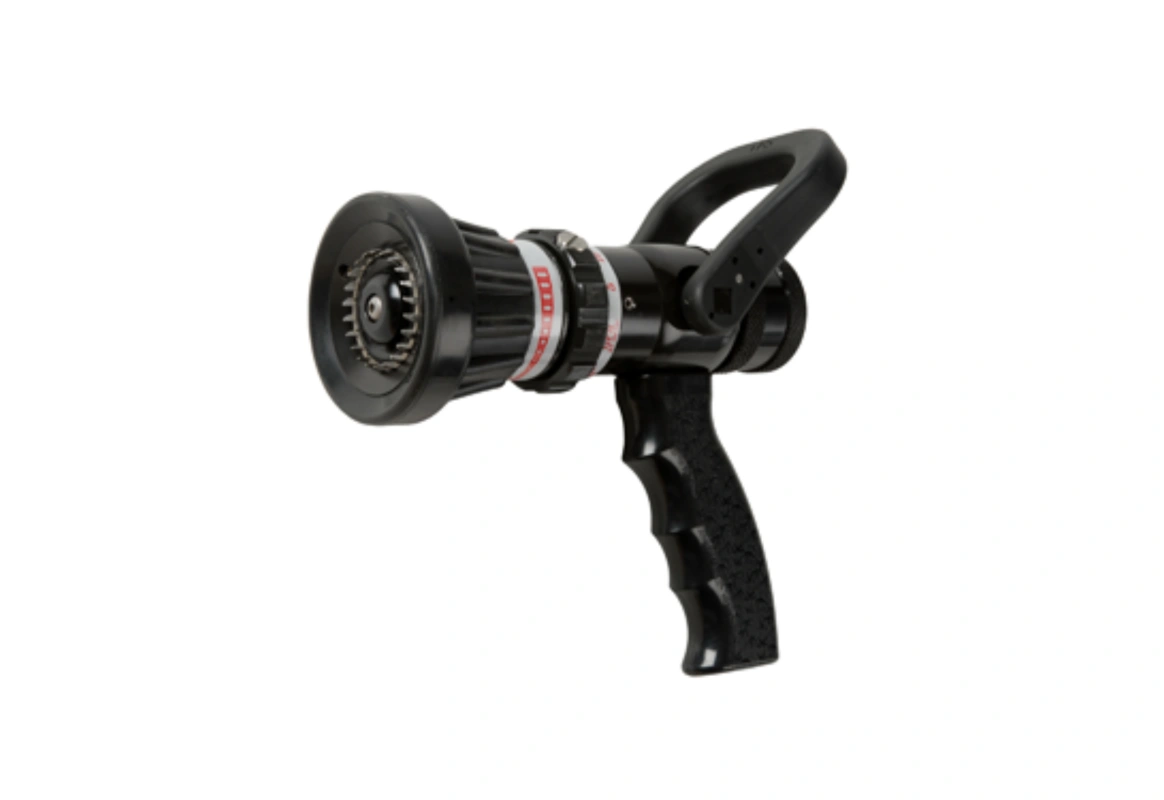

CHEMGUARD adjustable-flow, automatic-flow, constant-flow, and Coast Guard approved high-expansion foam handline nozzles provide a wide range of flexibility and flow-control options. Ideal for Class A and B fires, utilizing Class A and Class B foam concentrates, our handline nozzles achieve excellent foam expansion for quick fire knockdown and suppression.

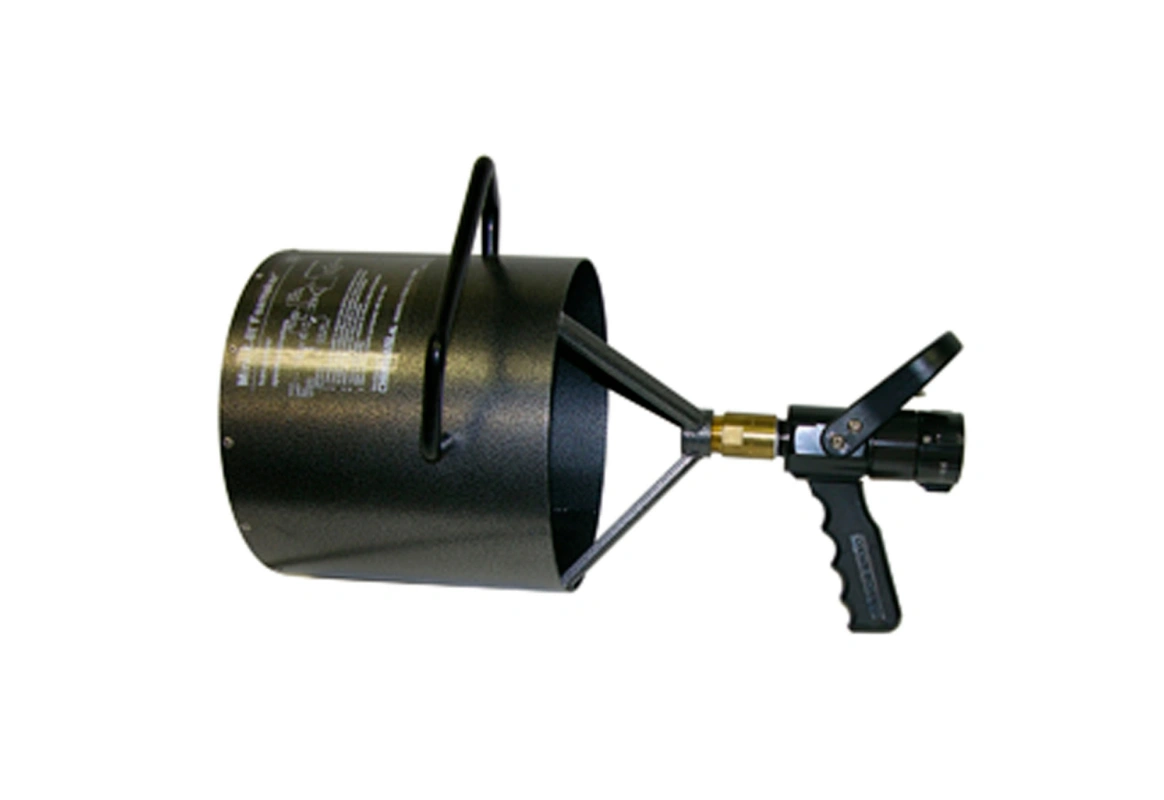

CHEMGUARD high-expansion nozzles rapidly deploy a foam blanket for fighting spill fires, as well as for vapor mitigation from spilled hydrocarbon and other types of non-polar flammable liquids. Lightweight and designed for one-person operation, these high-expansion nozzles are suitable for industrial and municipal applications.

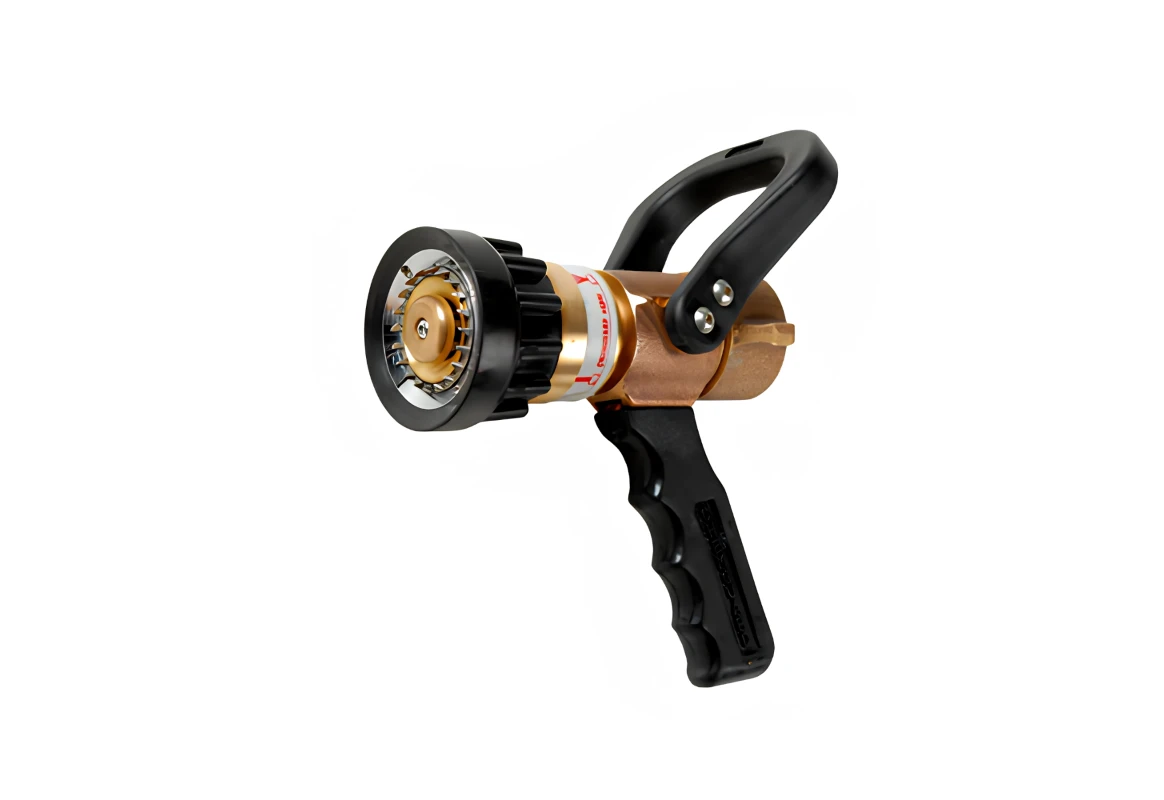

CHEMGUARD constant-flow handline nozzles provide a constant fog or straight-stream flow and can be flushed without shutting down. All-brass construction, our constant-flow nozzles include a removable rubber pistol grip; a large rubber bumper; durable chrome-plated ball shutoff; and heavy-duty spinning teeth for a powerful fog pattern. Select models of CHEMGUARD constant-flow handline nozzles are U.S. Coast Guard approved.

Available for use with our full line of monitors, for water and foam solutions, CHEMGUARD nozzles provide flow rates of 100 to 1,250 gallons per minute, with flows up to 5,000 gallons per minute possible on high-volume mobile/trailer units.

Manufactured from corrosion-resistant brass or anodized black aluminum, CHEMGUARD nozzles are fully adjustable, from straight stream to full fog. Serrated teeth improve the water fog pattern and aid foaming.

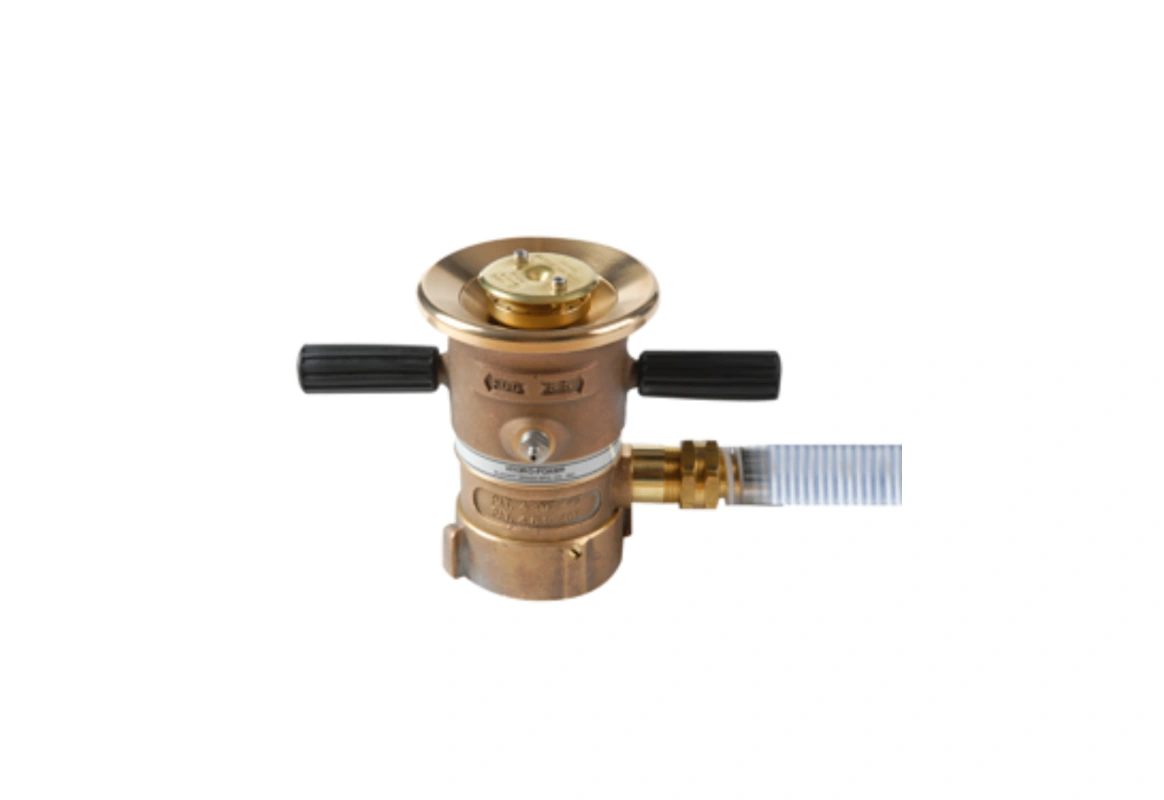

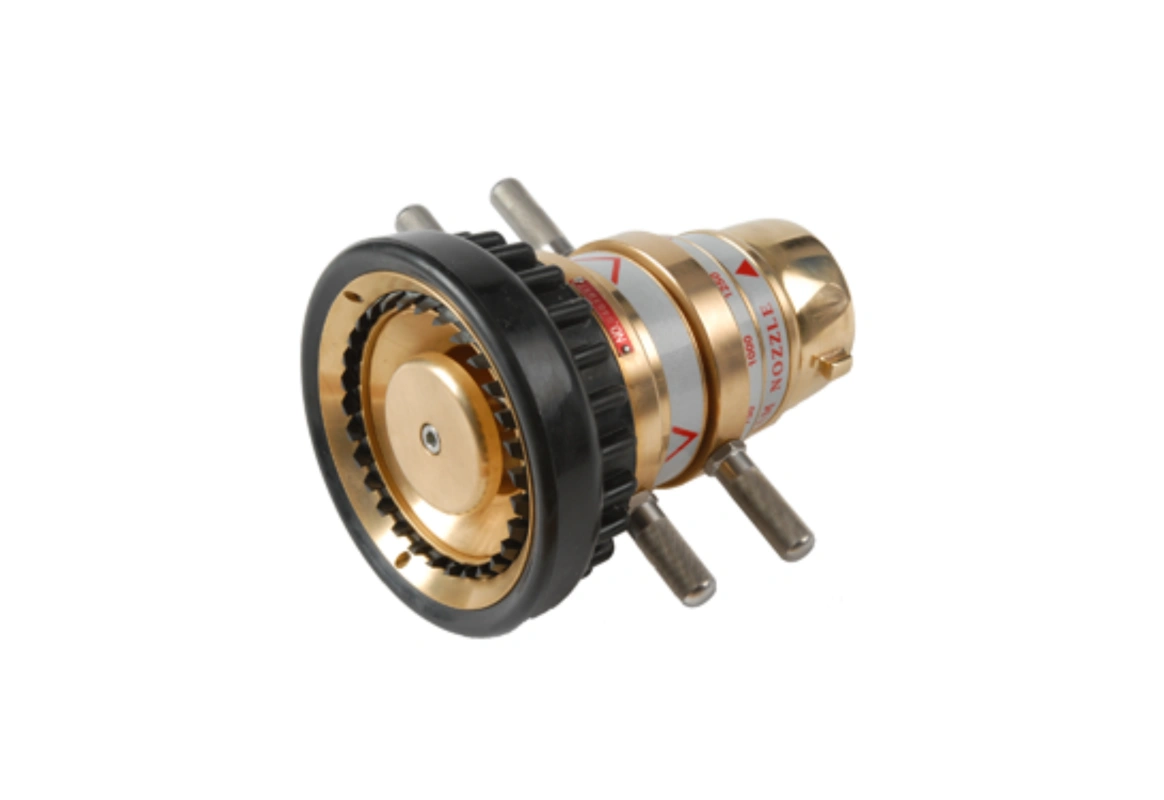

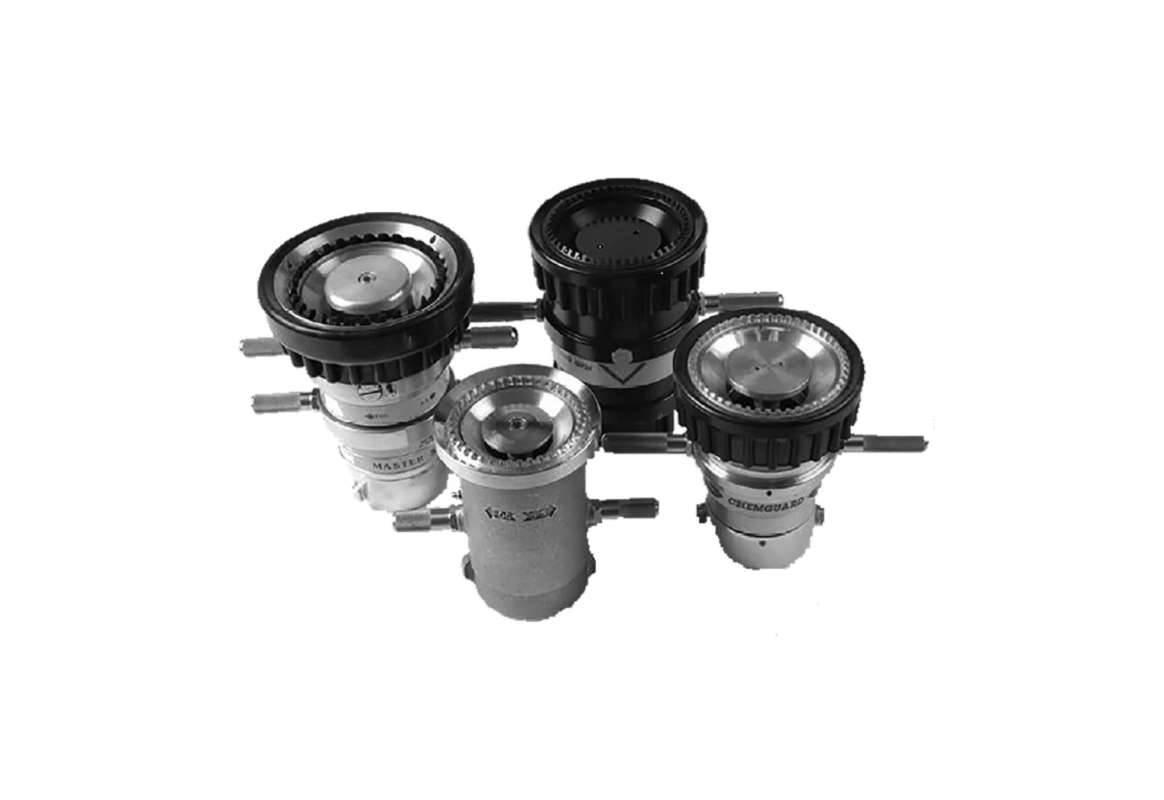

CHEMGUARD master-stream monitor nozzles are offered in fixed-gallonage, adjustable-gallonage, automatic, and self-educting versions.

Available for use with our full line of monitors, for water and foam solutions, CHEMGUARD nozzles provide flow rates of 100 to 1,250 gallons per minute, with flows up to 5,000 gallons per minute possible on high-volume mobile/trailer units.

CHEMGUARD master-stream monitor nozzles are offered in fixed-gallonage, adjustable-gallonage, automatic, and self-educting versions.

Available for use with our full line of monitors, for water and foam solutions, CHEMGUARD nozzles provide flow rates of 100 to 1,250 gallons per minute, with flows up to 5,000 gallons per minute possible on high-volume mobile/trailer units.

Manufactured from corrosion-resistant brass or anodized black aluminum, CHEMGUARD nozzles are fully adjustable, from straight stream to full fog. Serrated teeth improve the water fog pattern and aid foaming.

CHEMGUARD master-stream monitor nozzles are offered in fixed-gallonage, adjustable-gallonage, automatic, and self-educting versions.

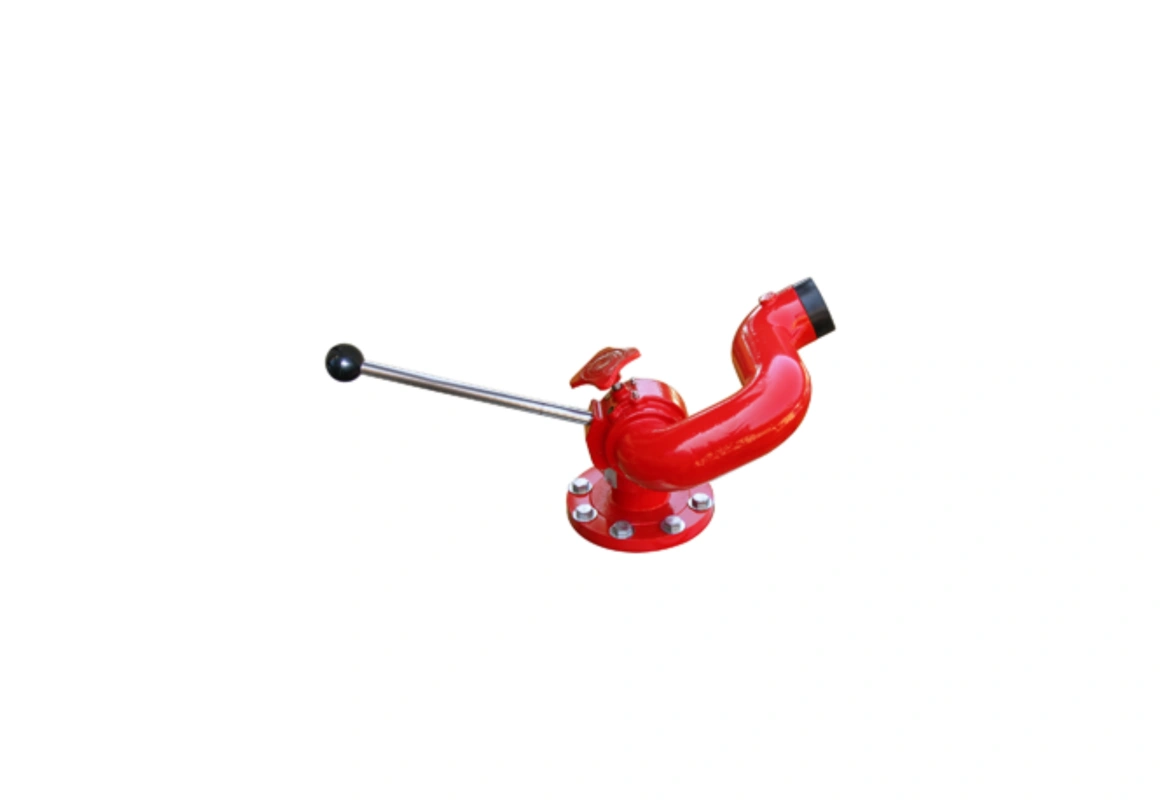

CHEMGUARD manual monitors feature rugged, corrosion-resistant construction, grease fittings, and stainless-steel ball bearings. Suitable for water and all types of foam solutions, CHEMGUARD manual monitors have 3 inch or greater waterways and 2 ½ inch or greater outlets. The brass ""Brahma"" single-waterway monitor is often used in demanding industrial, marine, and offshore applications.

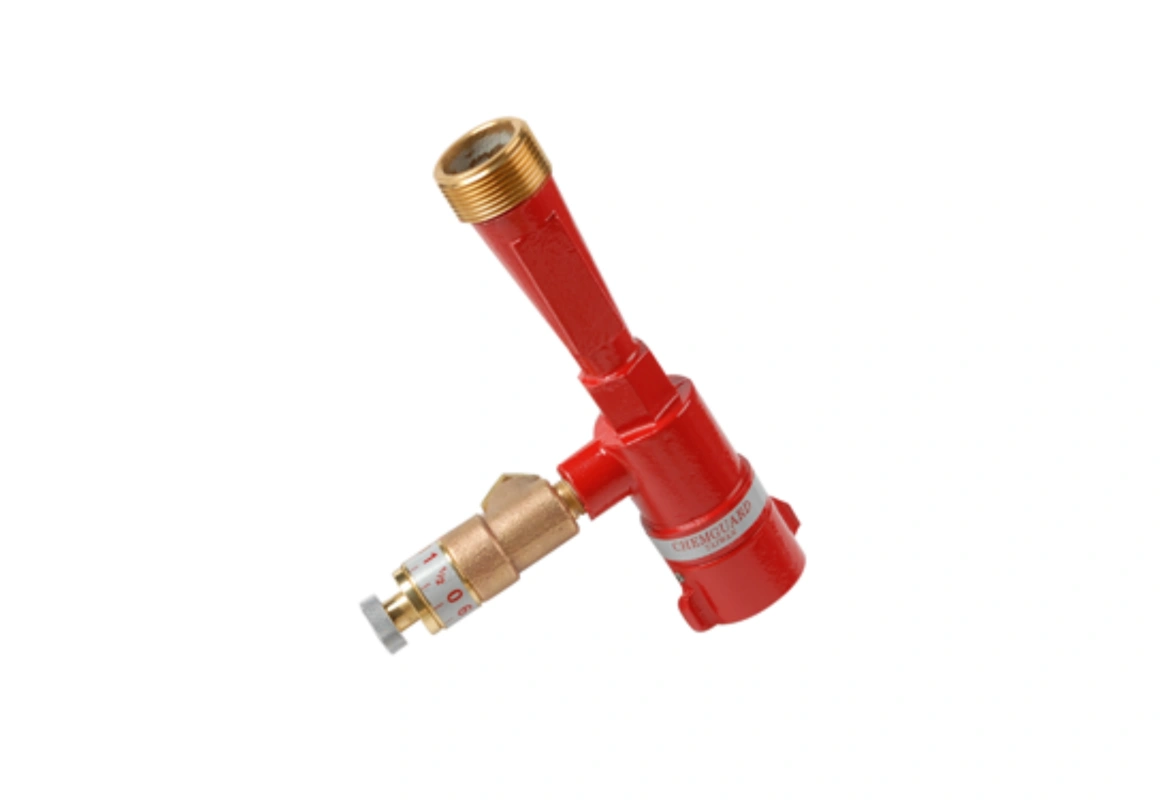

CHEMGUARD in-line eductors provide an inexpensive and effective method of metering all types of foam concentrate into a water stream. Our brass, corrosion-resistant eductors enable variable metering at 0%, 0.5%, 1.0%, 3.0% and 6.0%. CHEMGUARD in-line eductor system includes the metering valve and an 8-foot pickup-hose assembly.

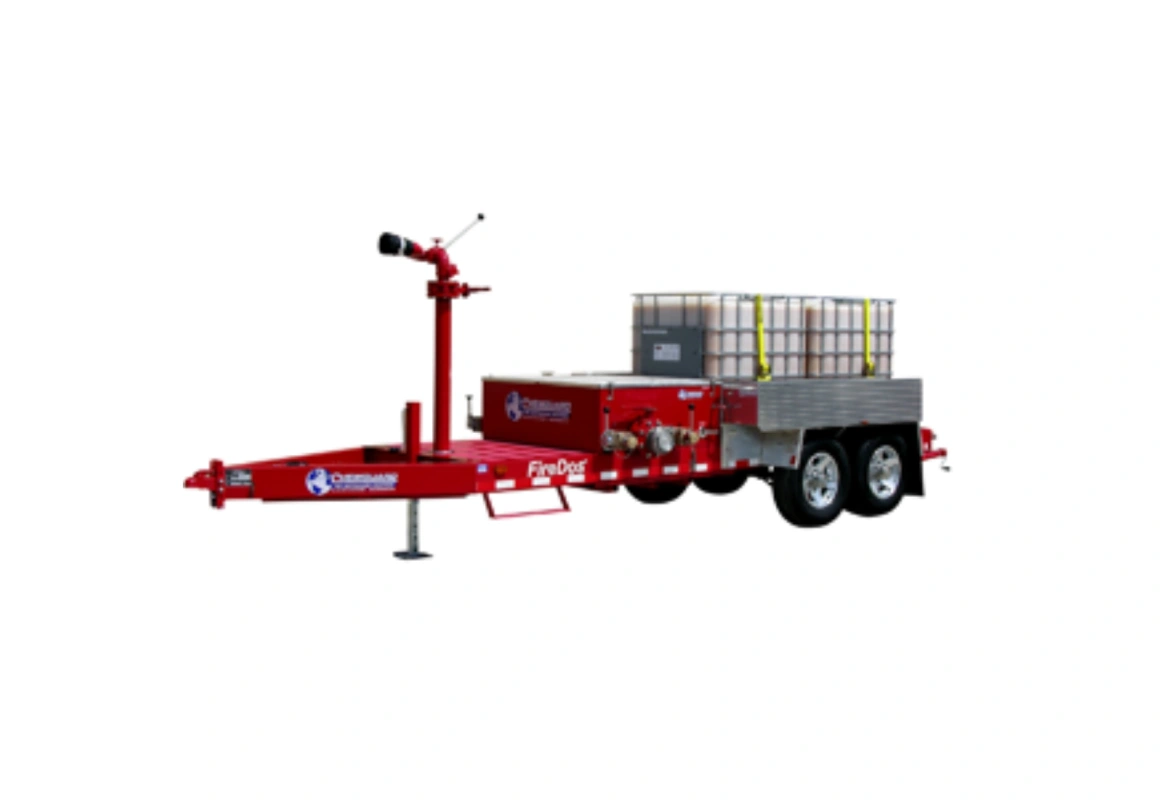

Self-contained CHEMGUARD single-, dual- and triple-tote foam trailers are designed to provide fire suppression and vapor control for demanding applications. The tote trailers may be customized with various options for inlet connections, foam concentrate pumps and piping, proportioning equipment, and self-educting nozzles.

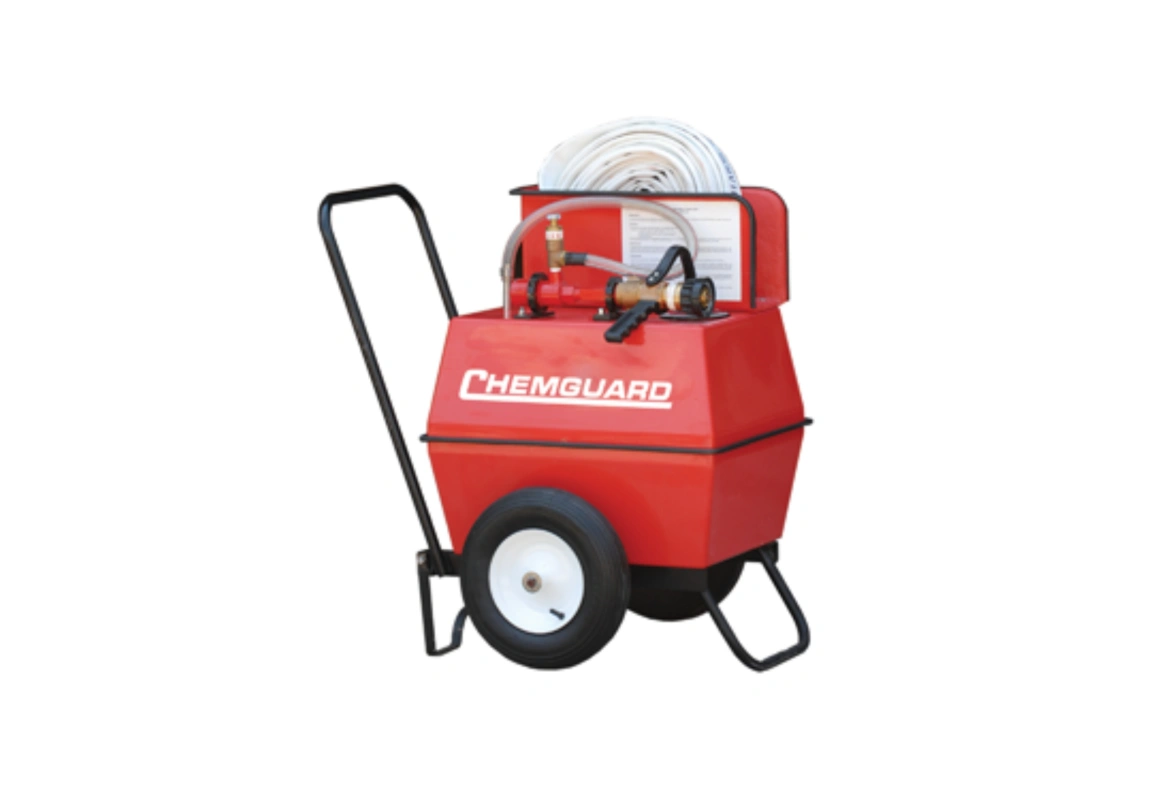

The Chemguard Mobile Foam Cart is designed to hold 36 gallons of fire fighting foam concentrate and contains a 95-gpm in-line eductor, a 95-gpm handline nozzle and 50 feet of 1½" rubber lined single jacket fire hose. The ease of handling and mobility of the foam cart makes this a very effective fire-fighting unit for flammable liquid fires. To place the unit in operation, connect a length of 1½" fire hose from a suitable water supply source to the in-line eductor inlet. Note: The in-line eductor design point is 95 gpm at 200 psi. Any reduction in pressure at the in-line eductor inlet will create a corresponding decrease in flow. The tank is manufactured of reinforced fiberglass, which makes the unit suitable for use with all types of foam concentrates and environments.

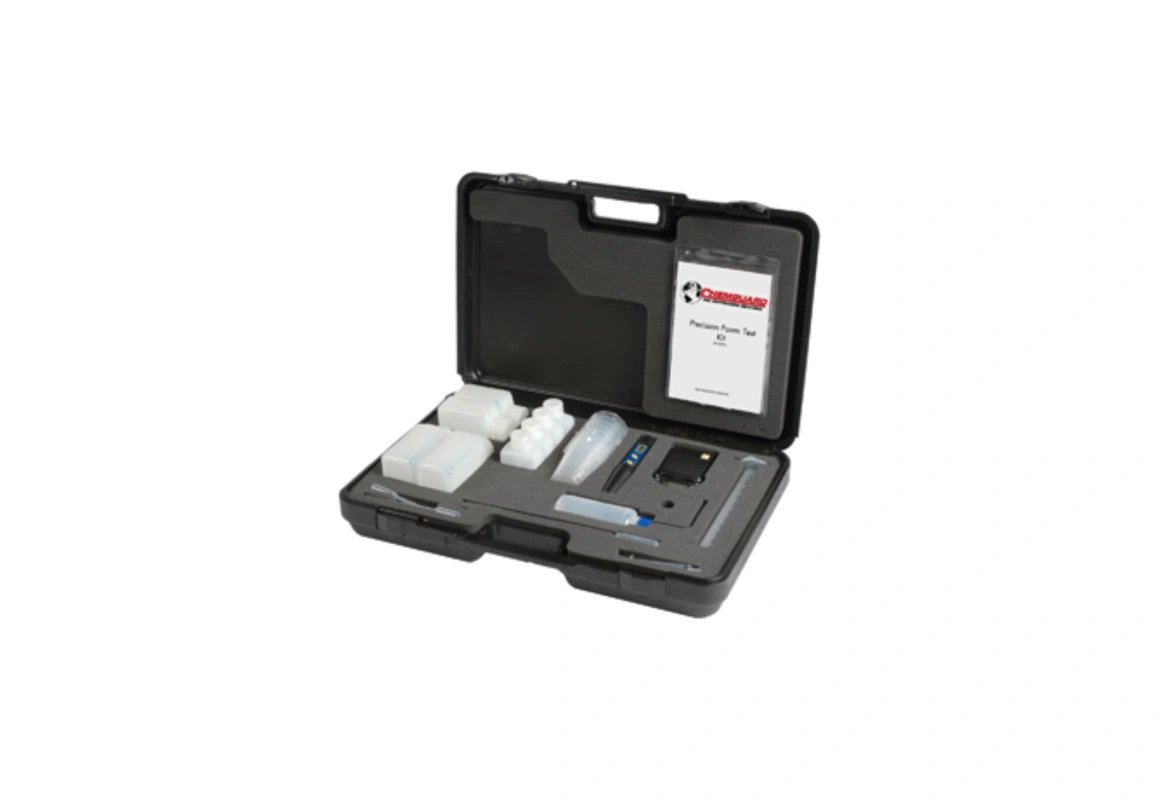

The Chemguard Precision Foam Solution Test Kit is a complete testing system, designed to assist the fire protection professional in determining the proportioning accuracy of mobile foam equipment and apparatus, fixed foam systems, and portable foam equipment. This kit contains everything normally needed, except for the foam to determine if foam solution discharged from a system or apparatus is mixed or proportioned as recommended by the foam concentrate manufacturer. The test kit utilizes conductivity, a measurement of the ability of liquids to conduct electricity, to determine the amount of foam concentrate in foam solutions.

Conductivity is the method adopted by most foam concentrate manufacturers and many foam equipment listing and approval agencies to determine the accuracy of foam proportioning equipment. Although not as costly as some digital conductivity meters alone, this kit is adequate to determine proportioning accuracy for most fire service applications. The Chemguard Precision Foam Test Kit takes all the guesswork out of the foam system testing with accuracy only achievable with a digital conductivity meter and a digital scale.

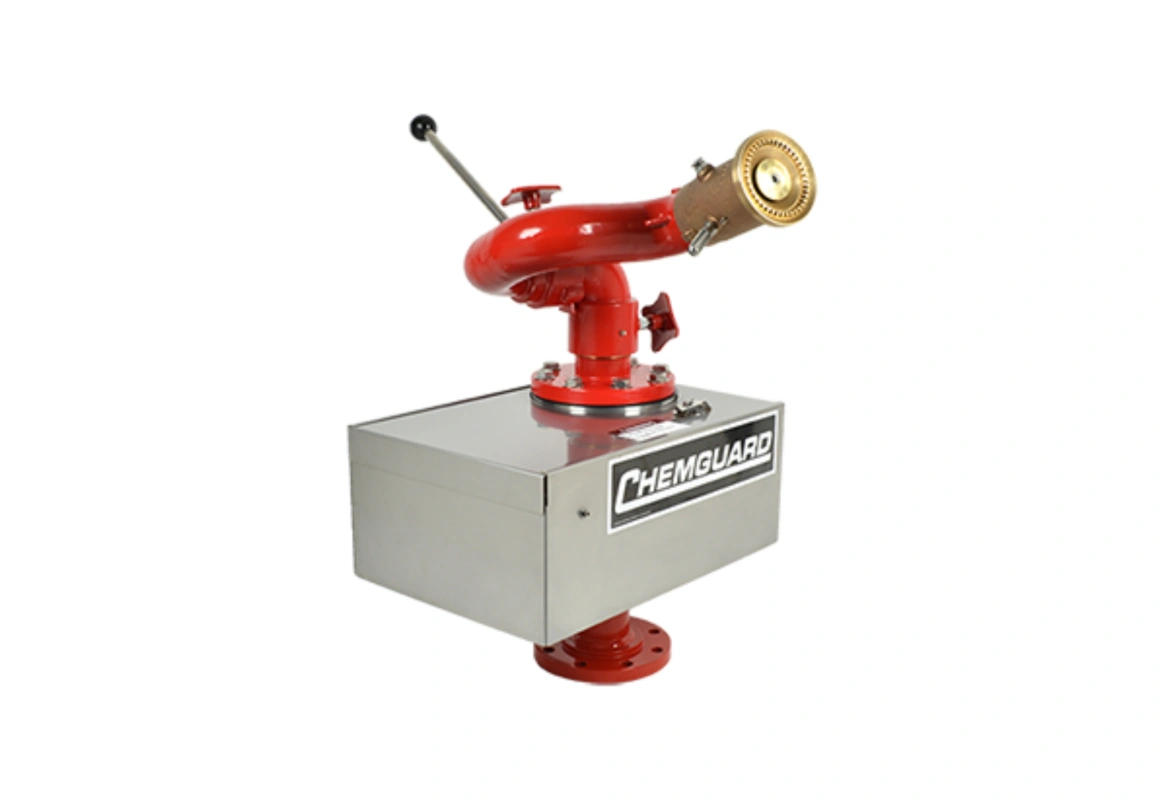

CHEMGUARD Water-Powered Oscillating Monitors are designed to automatically oscillate over a preset arc upon system activation, allowing discharge over a wide design area without manual intervention or the use of electrical power. This device is intended for use in firefighting foam systems designed in accordance with NFPA 11, NFPA 409, and/or NFPA 418, typically found in high risk areas such as tank farm facilities, refineries, aircraft hangars, and heliports.
