2. Foam Systems


Chemguard develops and produces fire suppression foams, equipment, and systems, specialty foam pumps, and fluorosurfactant specialty chemicals for demanding applications around the globe. An ISO 9001 company, we are known for our advanced R&D, engineering/design expertise, quality manufacturing, and unmatched customer support.

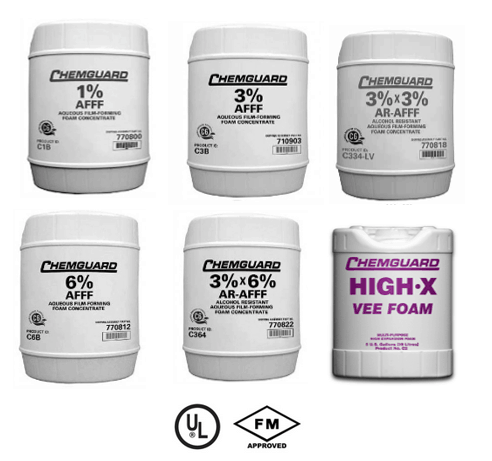

Foam Concentrates
Chemguard supplies fire-fighting foam concentrates to meet a wide range of fire-fighting challenges, including industrial, marine, mining, municipal, oil, petrochemical, and transportation. Our aqueous film-forming foams (AFFFs), Class A foams, wetting agents, high-expansion foam concentrates, and protein foams are suitable for ground and air attack, creating firebreaks, use with compressed-air foam systems (CAFS), and mop-up operations.
Download Brochures:
Bladder Tanks
Chemguard foam system bladder tanks provide accurate, dependable, and cost-effective foam fire protection for a variety of flammable/combustible hazard areas, with no external power other than water pressure. Water is applied to the outside surface of the bladder, displacing foam concentrate inside the bladder, which then is injected into the water stream. Bladder tanks are components of balanced-pressure proportioning systems, which often are installed on helicopter decks and in small aircraft hangers, storage facilities, and warehouses. Chemguard UL Listed and FM Approved bladder tanks are available in vertical and vertical prepiped (25-4,500 gallons) and horizontal and horizontal prepiped (50-4,500 gallons) configurations.
Download Brochures:
Discharge Devices
Chemguard foam discharge devices are designed to deliver foam directly Onto the surface of flammable or combustible liquid, can vary, depending On the application.
Download Brochures:
Chemguard designs, engineers, and manufactures a broad line of state-of-the-art proportioning devices: line proportioners (eductors), ratio-flow controllers, and the trade proportioner. Rugged, high-quality, and proven, these devices accurately and dependably proportion foam and water in a variety of applications.
Download Brochures:
Hydraulic Concentrate Control Valves
The hydraulic concentrate control valve is FM Approved and designed for use in either a CHEMGUARD bladder tank system or an in-line balanced pressure proportioning system. The valve is used to automatically open the line supplying concentrate to the foam proportioner. The valve requires no electrical power. It operates solely by the pressure of the inlet water supply.
Download Brochures:
Mobile Foam Cart
Chemguard designed and manufactures a rugged and versatile 36-gallon mobile foam cart. Featuring a reinforced-fiberglass tank, the cart is compatible with any fire-fighting foam concentrate. The Chemguard cart includes a 95 gallons per minute in-line eductor, a 95 gallons per minute handline nozzle, and 50 feet of rubber-lined, single-jacket fire hose.
Download Brochures:
Water Powered Oscillating Monitors
Chemguard Water Powered Oscillating Monitors are designed to automatically discharge over a specific design area upon system activation. These are suitable for use in high risk areas such as tank farm facilities, aircraft hangars, offshore, refineries, chemical plants, and heliports.
Download Brochures:
Elkhart Brass
Elkhart Brass is the industry's most experienced manufacturer of innovative firefighting and fire protection equipment. We manufacture 2,000 products used in virtually every aspect of fire-fighting. Our products are found in fire departments around the world, building systems and off-shore drilling sites, as well as in military, marine and industrial firefighting applications. We develop integrated systems of monitors, valves, and foam proportioning and electronic controls for the global emergency market.
Download Brochures:
